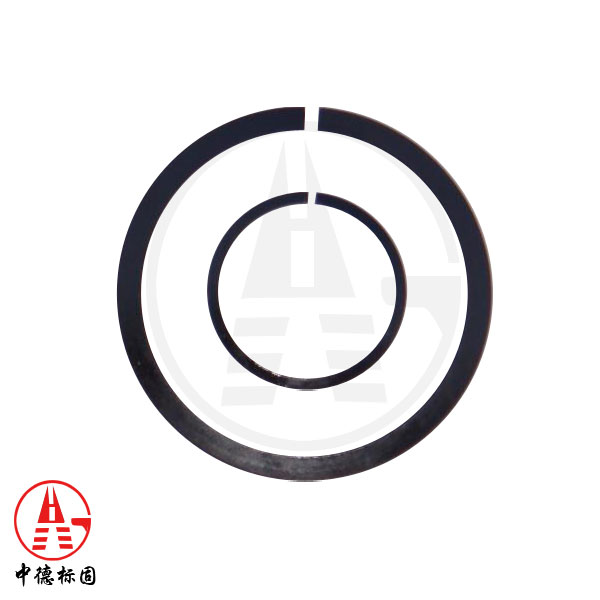

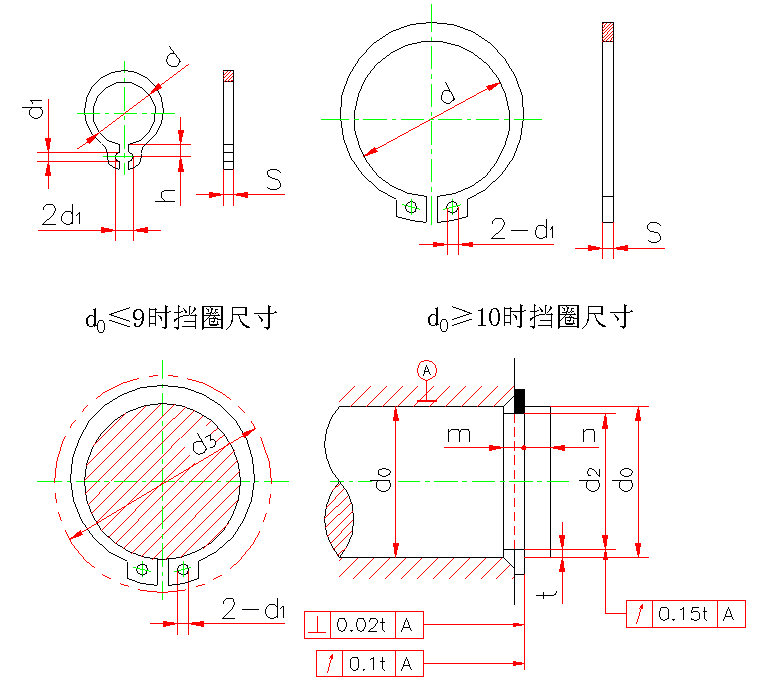

轴用弹性挡圈—B型(GB 894.2-86)
轴径 d0 | 挡 圈 | 沟 槽(推荐) | 孔 d3 ≤ | |||||||||
d | S | d1 | d2 | m | n ≥ | |||||||
基本尺寸 | 极限偏差 | 基本尺寸 | 极限偏差 | 基本尺寸 | 极限偏差 | 基本尺寸 | 极限偏差 | |||||
20 | 18.5 | -0.29 | 1 | -0.08 | 2 | 19 | 0 -0.13 | 1.1 | +0.14 0 | 1.5 | 29 | |
21 | 19.5 | -0.29 | 1 | -0.08 | 2 | 20 | 0 -0.13 | 1.1 | +0.14 0 | 1.5 | 31 | |
22 | 20.5 | -0.29 | 1 | -0.08 | 2 | 21 | 0 -0.13 | 1.1 | +0.14 0 | 1.5 | 32 | |
24 | 22.2 | -0.21 | 1.2 | -0.08 | 2 | 22.9 | 0 -0.21 | 1.3 | +0.14 0 | 1.7 | 34 | |
25 | 23.2 | -0.21 | 1.2 | -0.08 | 2 | 23.9 | 0 -0.21 | 1.3 | +0.14 0 | 1.7 | 35 | |
26 | 24.2 | -0.21 | 1.2 | -0.08 | 2 | 24.9 | 0 -0.21 | 1.3 | +0.14 0 | 1.7 | 36 | |
28 | 25.9 | -0.21 | 1.2 | -0.08 | 2 | 26.6 | 0 -0.21 | 1.3 | +0.14 0 | 2.1 | 38.4 | |
29 | 26.9 | -0.21 | 1.2 | -0.08 | 2 | 27.6 | 0 -0.21 | 1.3 | +0.14 0 | 2.1 | 39.8 | |
30 | 27.9 | -0.21 | 1.2 | -0.08 | 2 | 28.6 | 0 -0.21 | 1.3 | +0.14 0 | 2.1 | 42 | |
32 | 29.6 | -0.21 | 1.2 | -0.08 | 2.5 | 30.3 | 0 -0.25 | 1.3 | +0.14 0 | 2.6 | 44 | |
34 | 31.5 | -0.25 | 1.5 | -0.09 | 2.5 | 32.3 | 0 -0.25 | 1.7 | +0.14 0 | 2.6 | 46 | |
35 | 32.2 | -0.25 | 1.5 | -0.09 | 2.5 | 33 | 0 -0.25 | 1.7 | +0.14 0 | 3 | 48 | |
36 | 33.2 | -0.25 | 1.5 | -0.09 | 2.5 | 34 | 0 -0.25 | 1.7 | +0.14 0 | 3 | 49 | |
37 | 34.2 | -0.25 | 1.5 | -0.09 | 2.5 | 35 | 0 -0.25 | 1.7 | +0.14 0 | 3 | 50 | |
38 | 35.2 | -0.25 | 1.5 | -0.09 | 2.5 | 36 | 0 -0.25 | 1.7 | +0.14 0 | 3 | 51 | |
40 | 36.5 | -0.51 | 1.5 | -0.09 | 2.5 | 37.5 | 0 -0.25 | 1.7 | +0.14 0 | 3.8 | 53 | |
42 | 38.5 | -0.51 | 1.5 | -0.09 | 3 | 39.5 | 0 -0.25 | 1.7 | +0.18 0 | 3.8 | 56 | |
45 | 41.5 | -0.51 | 1.5 | -0.09 | 3 | 42.5 | 0 -0.25 | 1.7 | +0.18 0 | 3.8 | 59.4 | |
48 | 44.5 | -0.51 | 1.5 | -0.09 | 3 | 45.5 | 0 -0.25 | 1.7 | +0.18 0 | 3.8 | 62.8 | |
50 | 45.8 | -0.51 | 2 | -0.12 | 3 | 47 | 0 -0.25 | 2.2 | +0.18 0 | 4.5 | 64.8 | |
52 | 47.8 | -0.51 | 2 | -0.12 | 3 | 49 | 0 -0.25 | 2.2 | +0.18 0 | 4.5 | 67 | |
55 | 50.8 | -0.64 | 2 | -0.12 | 3 | 52 | 0 -0.30 | 2.2 | +0.18 0 | 4.5 | 70.4 | |
56 | 51.8 | -0.64 | 2 | -0.12 | 3 | 53 | 0 -0.30 | 2.2 | +0.18 0 | 4.5 | 71.7 | |
58 | 53.8 | -0.64 | 2 | -0.12 | 3 | 55 | 0 -0.30 | 2.2 | +0.18 0 | 4.5 | 73.6 | |
60 | 55.8 | -0.64 | 2 | -0.12 | 3 | 57 | 0 -0.30 | 2.2 | +0.18 0 | 4.5 | 75.8 | |
62 | 57.8 | -0.64 | 2 | -0.12 | 3 | 59 | 0 -0.30 | 2.2 | +0.18 0 | 4.5 | 79 | |
63 | 58.8 | -0.64 | 2 | -0.12 | 3 | 60 | 0 -0.30 | 2.2 | +0.18 0 | 4.5 | 79.6 | |
65 | 60.8 | -0.64 | 2.5 | -0.15 | 3 | 62 | 0 -0.30 | 2.7 | +0.18 0 | 4.5 | 81.6 | |
68 | 63.5 | -0.64 | 2.5 | -0.15 | 3 | 65 | 0 -0.30 | 2.7 | +0.18 0 | 4.5 | 85 | |
70 | 65.5 | -0.64 | 2.5 | -0.15 | 3 | 67 | 0 -0.30 | 2.7 | +0.18 0 | 4.5 | 87.2 | |
72 | 67.5 | -0.64 | 2.5 | -0.15 | 3 | 69 | 0 -0.30 | 2.7 | +0.18 0 | 4.5 | 89.4 | |
75 | 70.5 | -0.64 | 2.5 | -0.15 | 3 | 72 | 0 -0.30 | 2.7 | +0.18 0 | 4.5 | 92.8 | |
78 | 73.5 | -0.64 | 2.5 | -0.15 | 3 | 75 | 0 -0.30 | 2.7 | +0.18 0 | 4.5 | 96.2 | |
80 | 74.5 | -0.64 | 2.5 | -0.15 | 3 | 76.5 | 0 -0.30 | 2.7 | +0.18 0 | 5.3 | 98.2 | |
82 | 76.5 | -0.64 | 2.5 | -0.15 | 3 | 78.5 | 0 -0.30 | 2.7 | +0.18 0 | 5.3 | 101 | |
85 | 79.5 | -0.64 | 2.5 | -0.15 | 3 | 81.5 | 0 -0.35 | 2.7 | +0.18 0 | 5.3 | 104 | |
88 | 82.5 | -0.76 | 2.5 | -0.15 | 3 | 84.5 | 0 -0.35 | 2.7 | +0.18 0 | 5.3 | 107.3 | |
90 | 84.5 | -0.76 | 2.5 | -0.15 | 3 | 86.5 | 0 -0.35 | 2.7 | +0.18 0 | 5.3 | 110 | |
95 | 89.5 | -0.76 | 2.5 | -0.15 | 3 | 91.5 | 0 -0.35 | 2.7 | +0.18 0 | 5.3 | 115 | |
100 | 94.5 | -0.76 | 2.5 | -0.15 | 3 | 96.5 | 0 -0.35 | 2.7 | +0.18 0 | 5.3 | 121 | |
105 | 98 | -0.76 | 3 | -0.15 | 3 | 101 | 0 -0.54 | 3.2 | +0.18 0 | 6 | 132 | |
110 | 103 | -0.76 | 3 | -0.15 | 4 | 106 | 0 -0.54 | 3.2 | +0.18 0 | 6 | 136 | |
115 | 108 | -0.76 | 3 | -0.15 | 4 | 111 | 0 -0.54 | 3.2 | +0.18 0 | 6 | 142 | |
120 | 113 | -0.76 | 3 | -0.15 | 4 | 116 | 0 -0.54 | 3.2 | +0.18 0 | 6 | 145 | |
125 | 118 | -0.76 | 3 | -0.15 | 4 | 121 | 0 -0.63 | 3.2 | +0.18 0 | 6 | 151 | |
130 | 123 | -0.87 | 3 | -0.15 | 4 | 126 | 0 -0.63 | 3.2 | +0.18 0 | 6 | 158 | |
135 | 128 | -0.87 | 3 | -0.15 | 4 | 131 | 0 -0.63 | 3.2 | +0.18 0 | 6 | 162.8 | |
140 | 133 | -0.87 | 3 | -0.15 | 4 | 136 | 0 -0.63 | 3.2 | +0.18 0 | 6 | 168 | |
145 | 138 | -0.87 | 3 | -0.15 | 4 | 141 | 0 -0.63 | 3.2 | +0.18 0 | 6 | 174.4 | |
150 | 142 | -0.87 | 3 | -0.15 | 4 | 145 | 0 -0.63 | 3.2 | +0.18 0 | 7.5 | 180 | |
155 | 146 | -0.87 | 3 | -0.15 | 4 | 150 | 0 -0.63 | 3.2 | +0.18 0 | 7.5 | 186 | |
160 | 151 | -0.87 | 3 | -0.15 | 4 | 155 | 0 -0.63 | 3.2 | +0.18 0 | 7.5 | 190 | |
165 | 155.5 | -0.87 | 3 | -0.15 | 4 | 160 | 0 -0.63 | 3.2 | +0.18 0 | 7.5 | 195 | |
170 | 160.5 | -0.87 | 3 | -0.15 | 4 | 165 | 0 -0.63 | 3.2 | +0.18 0 | 7.5 | 200 | |
175 | 165.5 | -0.87 | 3 | -0.15 | 4 | 170 | 0 -0.63 | 3.2 | +0.18 0 | 7.5 | 206 | |
180 | 170.5 | -0.87 | 3 | -0.15 | 4 | 175 | 0 -0.63 | 3.2 | +0.18 0 | 7.5 | 212 | |
185 | 175.5 | -0.87 | 3 | -0.15 | 4 | 180 | 0 -0.63 | 3.2 | +0.18 0 | 7.5 | 218 | |
190 | 180.5 | -0.98 | 3 | -0.15 | 4 | 185 | 0 -0.72 | 3.2 | +0.18 0 | 7.5 | 223 | |
195 | 185.5 | -0.98 | 3 | -0.15 | 4 | 190 | 0 -0.72 | 3.2 | +0.18 0 | 7.5 | 229 | |
200 | 190.5 | -0.98 | 3 | -0.15 | 4 | 195 | 0 -0.72 | 3.2 | +0.18 0 | 7.5 | 235 |
