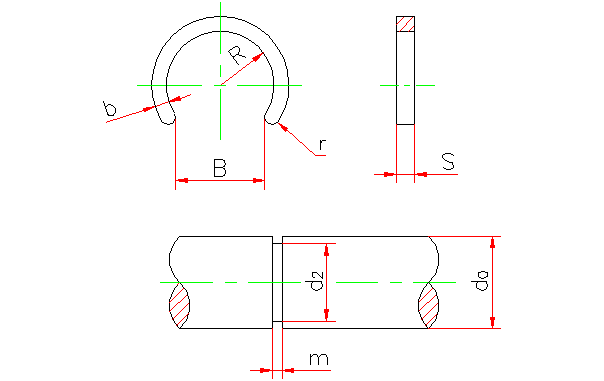

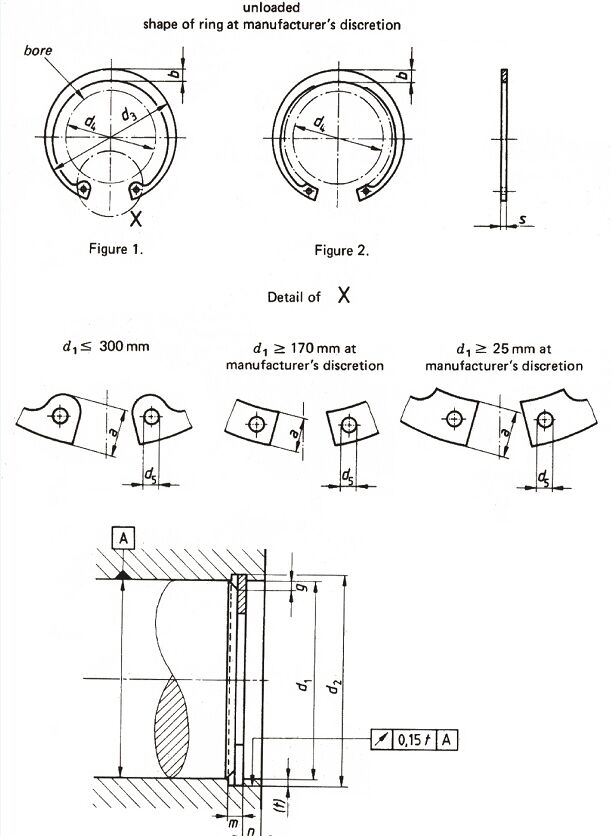

| 轴径 d0 | 挡圈 | 沟槽（推荐） | ||||||
| B | R | b | S | r | d2 | m | ||
| 基本尺寸 | 极限偏差 | |||||||
| 1.5 | 1.2 | ＋0.14 0 | 0.65 | 0.6 | 0.35 | 0.3 | 1 | 0.4 |
| 2 | 1.7 | ＋0.14 0 | 0.95 | 0.6 | 0.4 | 0.3 | 1.5 | 0.45 |
| 3 | 2.5 | ＋0.14 0 | 1.4 | 0.8 | 0.6 | 0.4 | 2.2 | 0.65 |
| 4 | 3.2 | ＋0.18 0 | 1.9 | 1 | 0.6 | 0.5 | 3 | 0.65 |
| 5 | 4.3 | ＋0.18 0 | 2.5 | 1.2 | 0.8 | 0.6 | 3.8 | 0.85 |
| 6 | 5.6 | ＋0.18 0 | 3.2 | 1.2 | 0.8 | 0.6 | 4.8 | 1.05 |
| 8 | 7.7 | ＋0.22 0 | 4.5 | 1.6 | 1 | 0.8 | 6.6 | 1.05 |
| 10 | 9.6 | ＋0.22 0 | 5.8 | 1.6 | 1 | 0.8 | 8.4 | 1.05 |
