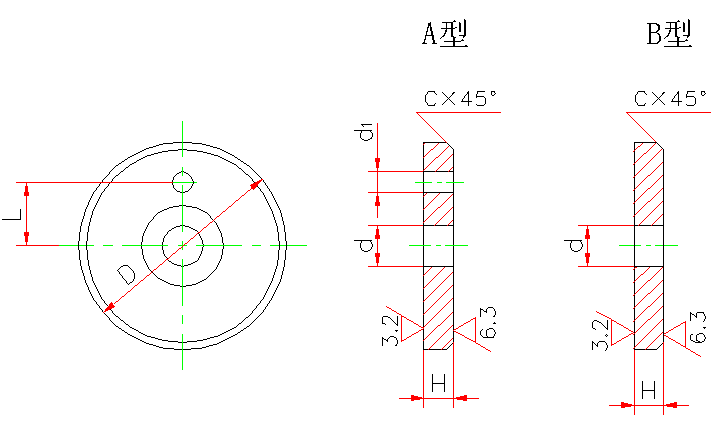

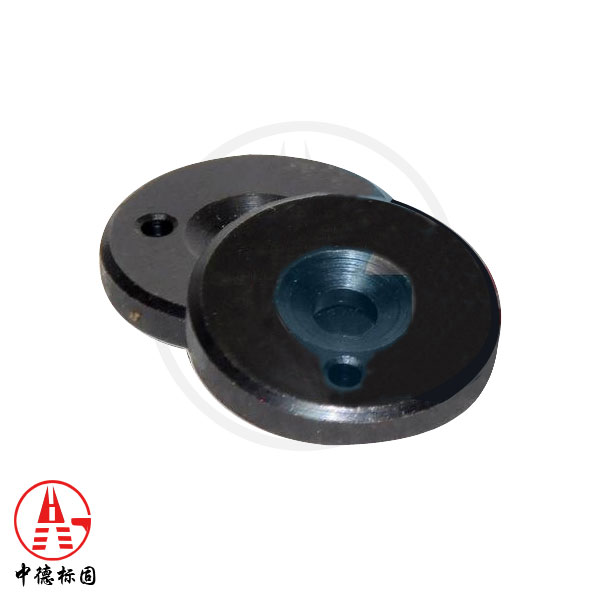

| 轴径 ≤ | 公称直径 D | H | L | d | d1 | c | 螺栓GB5783 （推荐） | 圆柱销 GB119 （推荐） | 垫圈 GB93 （推荐） | ||
| 基本尺寸 | 极限偏差 | 基本尺寸 | 极限偏差 | ||||||||
| 14 | 20 | 4 | 0 －0.30 | 0 | ±0.11 | 5.5 | 0 | 0.5 | M5×16 | — | 5 |
| 16 | 22 | 4 | 0 －0.30 | 0 | ±0.11 | 5.5 | 0 | 0.5 | M5×16 | — | 5 |
| 18 | 25 | 4 | 0 －0.30 | 0 | ±0.11 | 5.5 | 0 | 0.5 | M5×16 | — | 5 |
| 20 | 28 | 4 | 0 －0.30 | 7.5 | ±0.11 | 5.5 | 2.1 | 0.5 | M5×16 | A2×10 | 5 |
| 22 | 30 | 4 | 0 －0.30 | 7.5 | ±0.11 | 5.5 | 2.1 | 0.5 | M5×16 | A2×10 | 5 |
| 25 | 32 | 5 | 0 －0.30 | 10 | ±0.11 | 6.6 | 3.2 | 1 | M6×20 | A3×12 | 6 |
| 28 | 35 | 5 | 0 －0.30 | 10 | ±0.11 | 6.6 | 3.2 | 1 | M6×20 | A3×12 | 6 |
| 30 | 38 | 5 | 0 －0.30 | 10 | ±0.11 | 6.6 | 3.2 | 1 | M6×20 | A3×12 | 6 |
| 32 | 40 | 5 | 0 －0.30 | 12 | ±0.135 | 6.6 | 3.2 | 1 | M6×20 | A3×12 | 6 |
| 35 | 45 | 5 | 0 －0.30 | 12 | ±0.135 | 6.6 | 3.2 | 1 | M6×20 | A3×12 | 6 |
| 40 | 50 | 5 | 0 －0.30 | 12 | ±0.135 | 6.6 | 3.2 | 1 | M6×20 | A3×12 | 6 |
| 45 | 55 | 6 | 0 －0.30 | 16 | ±0.135 | 9 | 4.2 | 1.5 | M8×25 | A4×14 | 8 |
| 50 | 60 | 6 | 0 －0.30 | 16 | ±0.135 | 9 | 4.2 | 1.5 | M8×25 | A4×14 | 8 |
| 55 | 65 | 6 | 0 －0.30 | 16 | ±0.135 | 9 | 4.2 | 1.5 | M8×25 | A4×14 | 8 |
| 60 | 70 | 6 | 0 －0.30 | 20 | ±0.165 | 9 | 4.2 | 1.5 | M8×25 | A4×14 | 8 |
| 65 | 75 | 6 | 0 －0.30 | 20 | ±0.165 | 9 | 4.2 | 1.5 | M8×25 | A4×14 | 8 |
| 70 | 80 | 6 | 0 －0.30 | 20 | ±0.165 | 9 | 4.2 | 1.5 | M8×25 | A4×14 | 8 |
| 75 | 90 | 8 | 0 －0.36 | 25 | ±0.165 | 13 | 5.2 | 2 | M12×30 | A5×16 | 12 |
| 85 | 100 | 8 | 0 －0.36 | 25 | ±0.165 | 13 | 5.2 | 2 | M12×30 | A5×16 | 12 |
