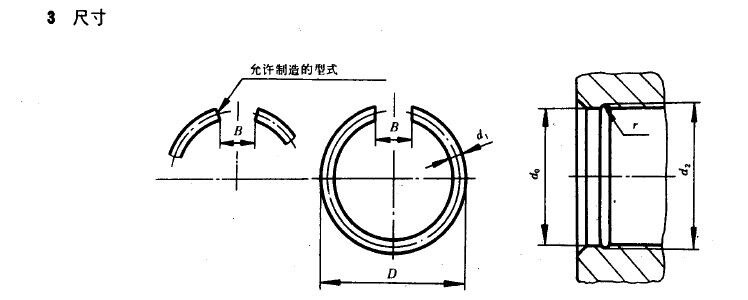

GB 895.1-1986 孔用钢丝挡圈
GB 895.1-1986 孔用钢丝挡圈
| 轴径 d0 | 挡 圈 | 沟 槽（推荐） | 孔 d3 ≤ | |||||||||
| d | S | d1 | h | d2 | m | n ≥ | ||||||
| 基本尺寸 | 极限偏差 | 基本尺寸 | 极限偏差 | 基本尺寸 | 极限偏差 | 基本尺寸 | 极限偏差 | |||||
| 3 | 2.7 | -0.11 | 0.4 | -0.03 | 1 | 0.95 | 2.8 | 0 -0.04 | 0.5 | +0.14 0 | 0.3 | 7.2 |
| 4 | 3.7 | -0.11 | 0.4 | -0.03 | 1 | 1.1 | 3.8 | 0 -0.048 | 0.5 | +0.14 0 | 0.3 | 8.8 |
| 5 | 4.7 | -0.11 | 0.6 | -0.03 | 1 | 1.25 | 4.8 | 0 -0.048 | 0.7 | +0.14 0 | 0.3 | 10.7 |
| 6 | 5.6 | -0.11 | 0.6 | -0.03 | 1.2 | 1.35 | 5.7 | 0 -0.048 | 0.7 | +0.14 0 | 0.5 | 12.2 |
| 7 | 6.5 | -0.12 | 0.6 | -0.03 | 1.2 | 1.55 | 6.7 | 0 -0.058 | 0.7 | +0.14 0 | 0.5 | 13.8 |
| 8 | 7.4 | -0.12 | 0.8 | -0.06 | 1.2 | 1.6 | 7.6 | 0 -0.058 | 0.9 | +0.14 0 | 0.6 | 15.2 |
| 9 | 8.4 | -0.12 | 0.8 | -0.06 | 1.2 | 1.65 | 8.6 | 0 -0.058 | 0.9 | +0.14 0 | 0.6 | 16.4 |
