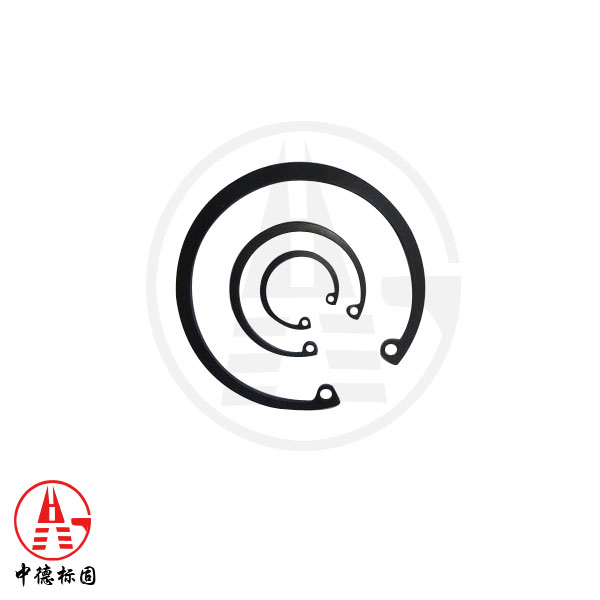

挡圈--弹性挡圈规格尺寸标准
锁紧螺母和弹簧垫圈配合使用区别
螺栓连接时,锁紧螺母和弹簧垫圈配合使用,锁紧螺母和平垫圈使用,比较分析一下。
锁紧螺母和弹簧垫圈配合使用,可以防松
锁紧螺母和平垫圈配合使用,可以防止压坏工件
| 孔用弹性挡圈 | 轴用弹性挡圈 | ||||||||||
| 孔径(mm) | 挡圈主要尺寸(mm) | 价格(元) | 轴径(mm) | 挡圈主要尺寸(mm) | 价格(元) | ||||||
| 外径 | 内径 | 厚度 | 钳孔 | 内径 | 外径 | 厚度 | 钳孔 | ||||
| 8 | 8.7 | 7 | 0.6 | 1 | 3 | 2.7 | 3.9 | 0.4 | 1 | ||
| 9 | 9.8 | 8 | 0.6 | 1 | 4 | 3.7 | 5 | 0.4 | 1 | ||
| 10 | 10.8 | 8.3 | 0.8 | 1.5 | 5 | 4.7 | 6.4 | 0.6 | 1 | ||
| 11 | 11.8 | 9.2 | 0.8 | 1.5 | 6 | 5.6 | 7.6 | 0.6 | 1.2 | ||
| 12 | 13 | 10.4 | 0.8 | 1.5 | 7 | 6.5 | 8.48 | 0.6 | 1.2 | ||
| 13 | 14.1 | 11.5 | 0.8 | 1.7 | 8 | 7.4 | 9.38 | 0.8 | 1.2 | ||
| 14 | 15.1 | 11.9 | 1 | 1.7 | 9 | 8.4 | 10.56 | 0.8 | 1.2 | ||
| 15 | 16.2 | 13 | 1 | 1.7 | 10 | 9.3 | 11.5 | 1 | 1.5 | ||
| 16 | 17.3 | 14.1 | 1 | 1.7 | 11 | 10.2 | 12.5 | 1 | 1.5 | ||
| 17 | 18.3 | 15.1 | 1 | 1.7 | 12 | 11 | 13.6 | 1 | 1.5 | ||
| 18 | 19.5 | 16.3 | 1 | 1.7 | 13 | 11.9 | 14.7 | 1 | 1.7 | ||
| 19 | 20.5 | 16.7 | 1 | 2 | 14 | 12.9 | 15.7 | 1 | 1.7 | ||
| 20 | 21.5 | 17.7 | 1 | 2 | 15 | 13.8 | 16.8 | 1 | 1.7 | ||
| 21 | 22.5 | 18.7 | 1 | 2 | 16 | 14.7 | 18.2 | 1 | 1.7 | ||
| 22 | 23.5 | 19.7 | 1 | 2 | 17 | 15.7 | 19.4 | 1 | 1.7 | ||
| 24 | 25.9 | 22.1 | 1.2 | 2 | 18 | 16.5 | 20.2 | 1 | 1.7 | ||
| 25 | 26.9 | 22.7 | 1.2 | 2 | 19 | 17.5 | 21.2 | 1 | 2 | ||
| 26 | 27.9 | 23.7 | 1.2 | 2 | 20 | 18.5 | 22.5 | 1 | 2 | ||
| 28 | 30.1 | 25.7 | 1.2 | 2 | 21 | 19.5 | 23.5 | 1 | 2 | ||
| 30 | 32.1 | 27.3 | 1.2 | 2 | 22 | 20.5 | 24.5 | 1 | 2 | ||
| 31 | 33.4 | 28.6 | 1.2 | 2.5 | 24 | 22.2 | 27.2 | 1.2 | 2 | ||
| 32 | 34.4 | 29.6 | 1.2 | 2.5 | 25 | 23.2 | 28.2 | 1.2 | 2 | ||
| 34 | 36.5 | 31.1 | 1.5 | 2.5 | 26 | 24.2 | 29.2 | 1.2 | 2 | ||
| 35 | 37.8 | 32.4 | 1.5 | 2.5 | 28 | 25.9 | 31.3 | 1.2 | 2 | ||
| 36 | 38.8 | 33.4 | 1.5 | 2.5 | 29 | 26.9 | 32.5 | 1.2 | 2 | ||
| 37 | 39.8 | 34.4 | 1.5 | 2.5 | 30 | 27.9 | 33.5 | 1.2 | 2 | ||
| 38 | 40.8 | 35.4 | 1.5 | 2.5 | 32 | 29.6 | 35.5 | 1.2 | 2.5 | ||
| 40 | 43.5 | 37.3 | 1.5 | 2.5 | 34 | 31.5 | 38 | 1.5 | 2.5 | ||
| 42 | 45.5 | 39.3 | 1.5 | 3 | 35 | 32.2 | 39 | 1.5 | 2.5 | ||
| 45 | 48.5 | 41.5 | 1.5 | 3 | 36 | 33.2 | 40 | 1.5 | 2.5 | ||
| 48 | 51.5 | 44.5 | 1.5 | 3 | 37 | 34.2 | 41 | 1.5 | 2.5 | ||
| 50 | 54.2 | 47.5 | 2 | 3 | 38 | 35.2 | 42.7 | 1.5 | 2.5 | ||
